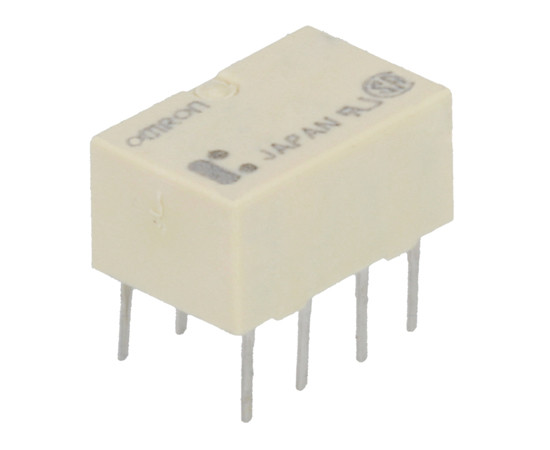

G6K-2P-DC05 subminiature relay

Symbol Micros: P G6K-2P-DC05

115761

P G6K-2P-DC05

Contractor Symbol:

Case : Rys.G6K2P

Datasheet

Technical drawing Add to favourites

1A; 5V; DPDT; 100mW; 10 x 6,5 x 5mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	1A
DC contact current:	1A
Contact voltage:	125VAC/60VDC
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	1A
DC contact current:	1A
Contact voltage:	125VAC/60VDC
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	10 x 6,5 x 5mm
Operating temperature (range):	-40°C ~ 70°C
