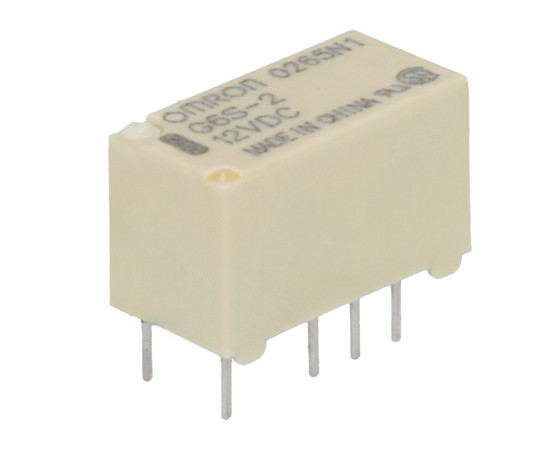

G6S-2-12VDC signal relay

Symbol Micros: P G6S-2-12

54447

P G6S-2-12

Contractor Symbol:

Case : Rys.G6S-2

Datasheet

Technical drawing Add to favourites

12V; 2A; 140mW; DPDT; 14,8x7,3x9,2mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	0,5A
DC contact current:	2A
Contact voltage:	max. 220V DC, max. 250V AC
Coil power:	140mW

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	0,5A
DC contact current:	2A
Contact voltage:	max. 220V DC, max. 250V AC
Coil power:	140mW
Mounting:	PCB
Manufacturer:	OMRON
Dimensions:	14,8x7,3x9,2mm
Operating temperature (range):	-40°C ~ 85°C
