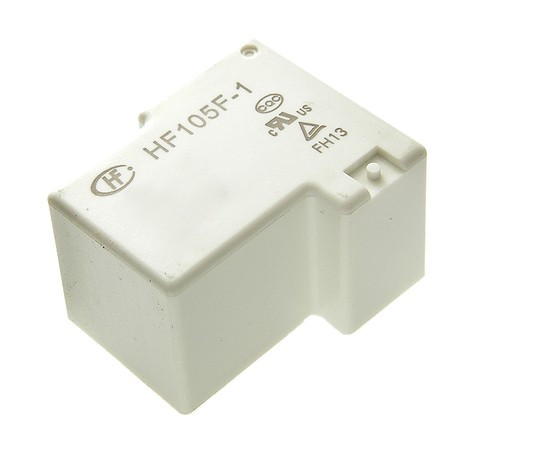

HF105F-1/12D-1ZS (JQX-105F-1) power relay

Symbol Micros: P HF105F1/12D-1ZSTF
Contractor Symbol:
Case : Rys.JQX105F1.1zs
Technical drawing Add to favourites
30A; 12V; SPDT; coil power 900mW; 32,2 x 20,0 x 27,0mm PCB; contacts AgCdO; equivalent: G7G/G8P, AZ2110/AZ2150
Parameters
Coil voltage (V): 12V
Insulation breakdown voltage: 2500V
Contact current: 30A
Type: SPDT
Coil current type: DC
Manufacturer:: Hongfa Manufacturer part number: HF105F-1/012D-1ZSTF RoHS Case style: Rys.JQX105F1.1zs Datasheet
In stock:
185 pcs.
Quantity of pcs. 1+ 3+ 10+ 40+ 200+
Net price (EUR) 3,2106 2,8654 2,6568 2,5345 2,4697
Add to comparison tool
Packaging:
40/400
Coil voltage (V): 12V
Insulation breakdown voltage: 2500V
Contact current: 30A
Type: SPDT
Coil current type: DC
