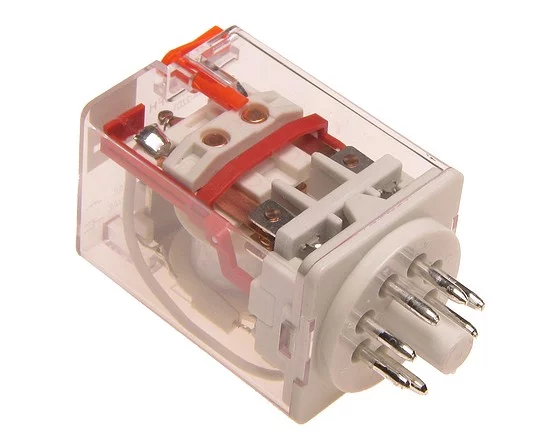

HF10FH/024A-2ZDT power relay

Symbol Micros: P HF10fh024a-2zdt

28972

P HF10fh024a-2zdt

Contractor Symbol:

Case : Rys.HF10FH.2z

Datasheet

Technical drawing Add to favourites

10A; 24VAC; DPCO; coil power 2,7VA; 35,5 x 35,5 x 55,3mm Octal Type Plug; contacts AgSnO2

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Coil voltage (V):	24V
Insulation breakdown voltage:	2500V
Contact current:	10A
Type:	DPDT
Coil current type:	AC

All parameters

Manufacturer:: Hongfa Manufacturer part number: HF10FH/024A-2ZDT RoHS Case style: Rys.HF10FH.2z Datasheet

In stock:

12 pcs.

Quantity of pcs.	1+	5+	20+	40+	100+
Net price (EUR)	5,8271	5,2267	4,9875	4,9184	4,8563

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: Hongfa Manufacturer part number: HF10FH/024A-2ZDT RoHS Case style: Rys.HF10FH.2z Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	5+	10+	30+
Net price (EUR)	6,9866	6,6645	6,3747	6,2274	6,0756

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
1 Quantity (multiple: 1)

- +

• Parameters

Coil voltage (V):	24V
Insulation breakdown voltage:	2500V
Contact current:	10A
Type:	DPDT
Coil current type:	AC
