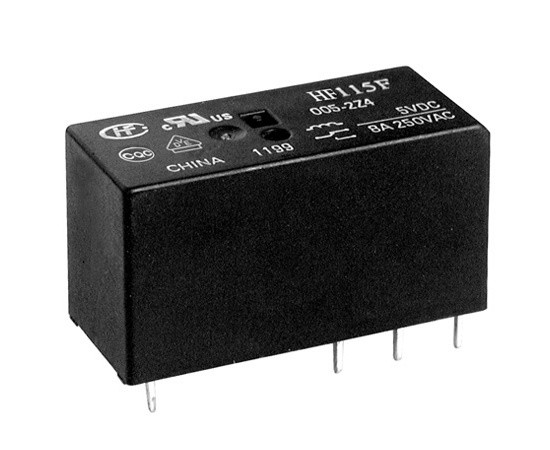

HF115F/005-1ZS3 (JQX-115F) power relay
Symbol Micros:
P HF115f005-1zs3a
Case : Rys.JQX115F.3
16A; 5V; SPDT; coil power 400mW; 29,0 x 16,0 x 13,0mm PCB; equivalent: RM85Z, RM83Z, AZ761, G2RL
Parameters
Coil voltage (V): | 5V |
Contact current: | 16A |
Type: | SPDT |
Coil current type: | DC |
Insulation breakdown voltage: | 5000V |
Coil voltage (V): | 5V |
Contact current: | 16A |
Type: | SPDT |
Coil current type: | DC |
Insulation breakdown voltage: | 5000V |
