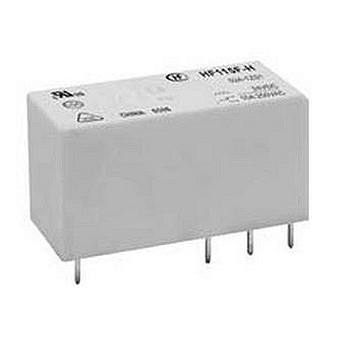

HF115F-I/012-1HS3A power relay

Symbol Micros: P HF115Fi012-1hs3a

123639

P HF115Fi012-1hs3a

Contractor Symbol:

Case : Rys.HF115F.h3

Datasheet

Technical drawing Technical drawing Add to favourites

16A; 12V; SPST-NO; coil power 400mW; 29,0 x 12,7 x 15,7mm plastic sealed; PCB; equivalent: G5RL

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Coil voltage (V):	12V
Insulation breakdown voltage:	5000V
Contact current:	16A
Type:	SPST-NO
Coil current type:	DC

All parameters

Manufacturer:: Hongfa Manufacturer part number: HF115F-I/012-1HS3A RoHS Case style: Rys.HF115F.h3 Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,4799	2,0792	1,8490	1,7062	1,6532

Add inquiry (RFQ)

Packaging:
50/500 Quantity (multiple: 1)

- +

• Parameters

Coil voltage (V):	12V
Insulation breakdown voltage:	5000V
Contact current:	16A
Type:	SPST-NO
Coil current type:	DC
