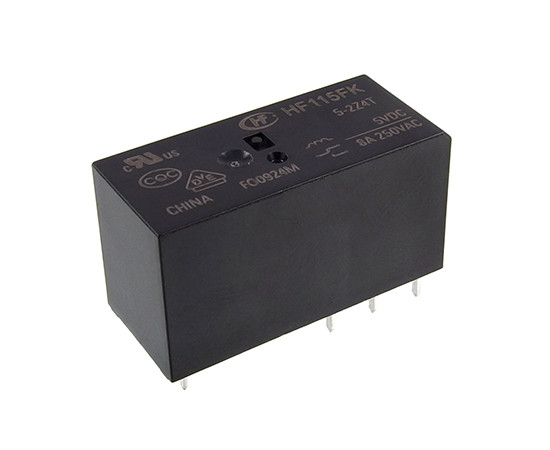

HF115FK/05-2Z4T power relay

Symbol Micros: P HF115fk005-2Z4T

89432

P HF115fk005-2Z4T

Contractor Symbol:

Case : Rys.HF115FK.2z4

Datasheet

Technical drawing Add to favourites

8A; 5V; DPDT; coil power 400mW; 29,0 x 12,7 x 15,7mm PCB; contacts AgSnO2;

Parameters

Coil voltage (V):	5V
Contact current:	8A
Type:	DPDT
Coil current type:	DC
Insulation breakdown voltage:	5000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	5V
Contact current:	8A
Type:	DPDT
Coil current type:	DC
Insulation breakdown voltage:	5000V
