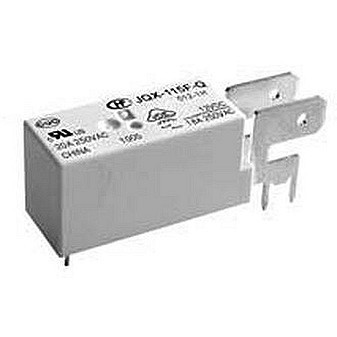

HF115F-Q/012-1HT (JQX-115F-Q) power relay

Symbol Micros: P HF115Fq012-1ht

40281

P HF115Fq012-1ht

Contractor Symbol:

Case : Rys.HF115Fq.ht

Datasheet

Technical drawing Add to favourites

20A; 12V; SPST-NO; coil power 400mW; 31,5 x 12,7 x 15,7mm PCB+QC

Parameters

Coil voltage (V):	12V
Contact current:	20A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	5000V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	12V
Contact current:	20A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	5000V
