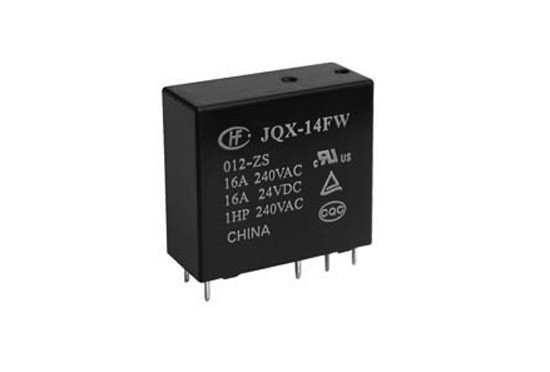

HF14FW/012-HST (JQX-14FW) power relay

Symbol Micros: P HF14fw012-hst

29438

P HF14fw012-hst

Contractor Symbol:

Case : Rys.HF14FW.h

Datasheet

Technical drawing Add to favourites

20A; 12V; SPST-NO; coil power 530mW 29,0 x 13,0 x 26,5mm PCB; equivalent: G2R, RM83

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Coil voltage (V):	12V
Insulation breakdown voltage:	4000V
Contact current:	20A
Type:	SPST-NO
Coil current type:	DC

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	12V
Insulation breakdown voltage:	4000V
Contact current:	20A
Type:	SPST-NO
Coil current type:	DC
