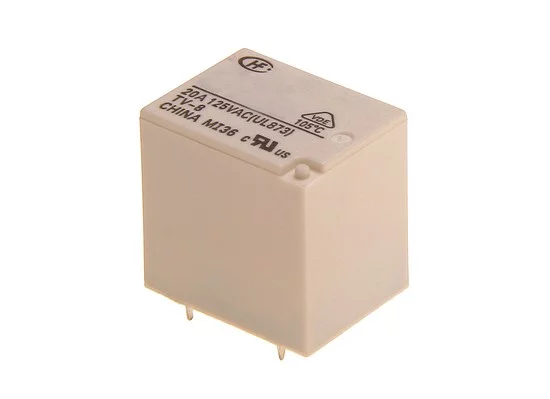

HF152F-T/012-1HTQ power relay

Symbol Micros: P HF152ft012-1htq

29432

P HF152ft012-1htq

Contractor Symbol:

Case : Rys.HF152F.1h

Datasheet

Technical drawing Add to favourites

20A; 12V; SPST-NO; coil power 360mW; 21,0 x 16,0 x 20,6mm PCB; equivalent: G5LE-VD

Parameters

Coil voltage (V):	12V
Contact current:	20A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	3000V

All parameters

Manufacturer:: Hongfa Manufacturer part number: HF152F-T/012-1HTQ RoHS Case style: Rys.HF152F.1h Datasheet

In stock:

1501 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,0710	1,7374	1,5443	1,4252	1,3799

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/500/1000 Quantity (multiple: 1)

- +

• Parameters

Coil voltage (V):	12V
Contact current:	20A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	3000V
