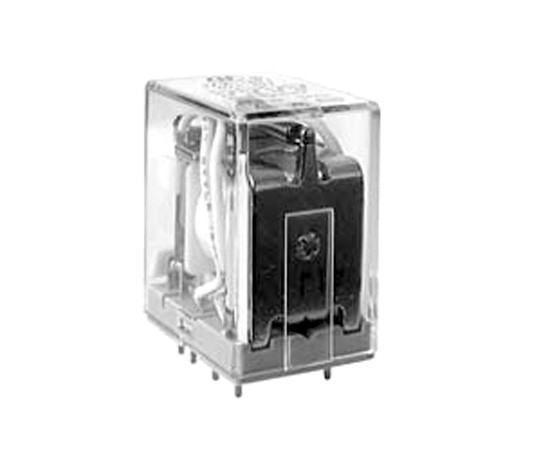

HF18FF/024-4Z1 (JZX-18FF) power relay

Symbol Micros: P HF18ff024-4z1

29418

P HF18ff024-4z1

Contractor Symbol:

Case : Rys.HF18FF.4z

Datasheet

Technical drawing Add to favourites

5A; 24VDC; 4PCO; coil power 900mW; 28,0 x 21,5 x 35,0mm Plug-in; equivalent: JZX-18FF

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Coil voltage (V):	24V
Insulation breakdown voltage:	1500V
Contact current:	5A
Type:	4PCO
Coil current type:	DC

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Coil voltage (V):	24V
Insulation breakdown voltage:	1500V
Contact current:	5A
Type:	4PCO
Coil current type:	DC
