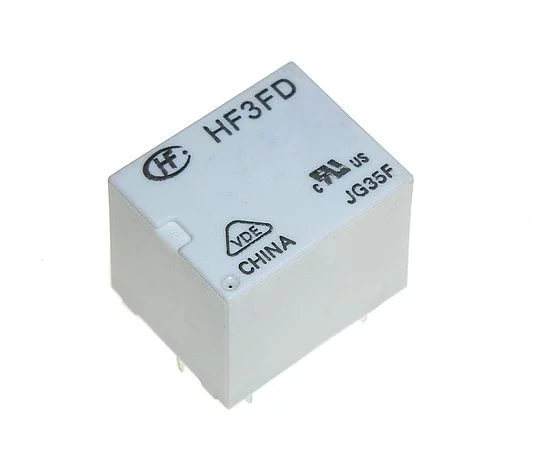

HF3FD/012-ZTF power relay

Symbol Micros: P HF3FD012-ztf

49822

P HF3FD012-ztf

Contractor Symbol:

Case : Rys.HF3FD.1z

Datasheet

Technical drawing Add to favourites

10A; 12V; SPDT; coil power 360mW; 19,0 x 15,2 x 15,5mm PCB; contacts AgSnO2; equivalent JQC3FF; AZ943

Parameters

Coil voltage (V):	12V
Insulation breakdown voltage:	2500V
Contact current:	10A
Type:	SPDT
Coil current type:	DC

All parameters

Manufacturer:: Hongfa Manufacturer part number: HF3FD/012-ZTF RoHS Case style: Rys.HF3FD.1z Datasheet

In stock:

160 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,4675	1,0263	0,8728	0,7985	0,7721

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-09-01

Quantity of pcs.: 1000

• Parameters

Coil voltage (V):	12V
Insulation breakdown voltage:	2500V
Contact current:	10A
Type:	SPDT
Coil current type:	DC
