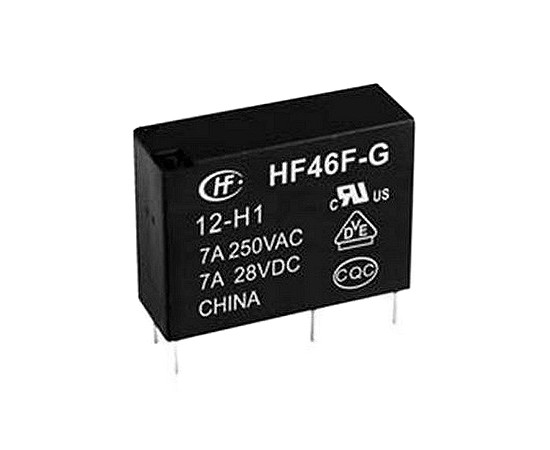

HF46F-G/5-HS1T subminiature power relay

Symbol Micros: P HF46fg005-hs1t

35888

P HF46fg005-hs1t

Contractor Symbol:

Case : Rys.HF46FG

Datasheet

Technical drawing Add to favourites

10A; 5V; 1st. SPST-NO; coil power 200mW; 20,5 x 7,2 x 15,3mm PCB; contact material AgSnO2

Parameters

Coil voltage (V):	5V
Contact current:	10A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	4000V

All parameters

Manufacturer:: Hongfa Manufacturer part number: HF46F-G/5-HS1T RoHS Case style: Rys.HF46FG Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	3+	10+	40+	160+
Net price (EUR)	1,3066	0,9948	0,8211	0,7283	0,6878

Add to comparison tool Add inquiry (RFQ)

Packaging:
160/1600 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-21

Quantity of pcs.: 19200

• Parameters

Coil voltage (V):	5V
Contact current:	10A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	4000V
