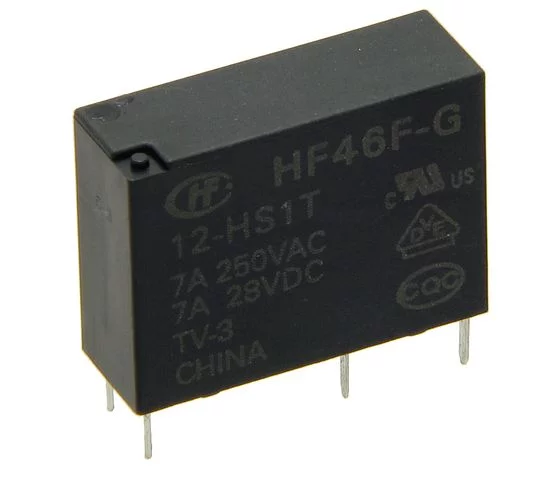

HF46F-G/012-HS1T subminiature power relay

Symbol Micros: P HF46fg012-hs1t

35889

P HF46fg012-hs1t

Contractor Symbol:

Case : Rys.HF46FG

Datasheet

Technical drawing Add to favourites

10A; 12V; 1st. SPST-NO; coil power 200mW; 20,5 x 7,2 x 15,3mm PCB; contact material AgSnO2

Parameters

Coil voltage (V):	12V
Contact current:	10A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	4000V

All parameters

Manufacturer:: Hongfa Manufacturer part number: HF46F-G/12-HS1T RoHS Case style: Rys.HF46FG Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	5+	30+	160+	640+
Net price (EUR)	1,2197	0,8116	0,6507	0,5970	0,5807

Add to comparison tool Add inquiry (RFQ)

Packaging:
160/1600 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-06-30

Quantity of pcs.: 160





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-08-16

Quantity of pcs.: 400

• Parameters

Coil voltage (V):	12V
Contact current:	10A
Type:	SPST-NO
Coil current type:	DC
Insulation breakdown voltage:	4000V
