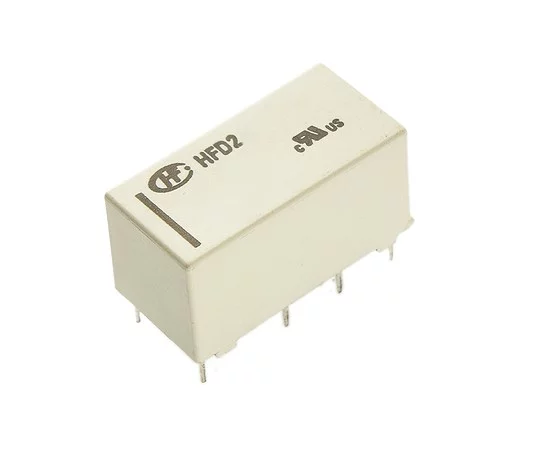

HFD2/012-S-L2 signal relay bistable 2 coils latching

Symbol Micros: P HFD2012sl2

9707

P HFD2012sl2

Contractor Symbol:

Case : Rys.HFD2.sl2

Datasheet

Technical drawing Add to favourites

2A; 12V; DPDT; coil power 150mW; 20,0 x 10,0 x 10,0mm PCB; not for new design

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	1A
DC contact current:	3A
Contact voltage:	250VAC/220VDC
Coil power:	150mW

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	1A
DC contact current:	3A
Contact voltage:	250VAC/220VDC
Coil power:	150mW
Mounting:	PCB
Manufacturer:	Hongfa
Dimensions:	20,0 x 10,0 x 10,0mm
Operating temperature (range):	-40°C ~ 85°C
