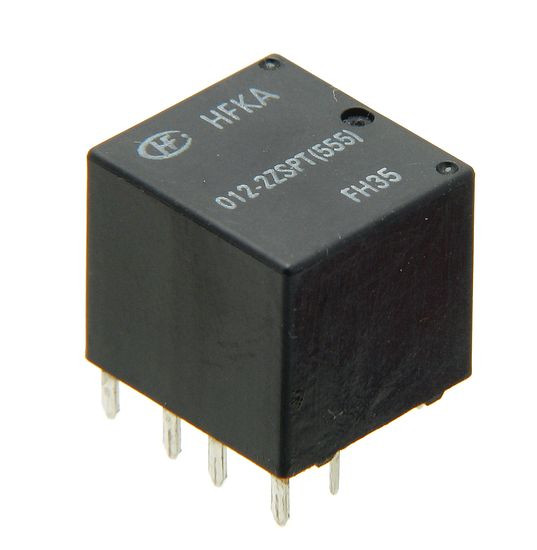

HFKA/012-2ZST automotive relay

Symbol Micros: P HFKa012-2zst

29800

P HFKa012-2zst

Contractor Symbol:

Case : Rys.HFKA-2z

Datasheet

Technical drawing Add to favourites

25A; 12V; DPDT; coil power 0,64W; 14,0 x 14,2 x 15,4mm PCB; equivalent: G8ND/G8NW

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage (V):	12V
Contact current:	25A
Contact voltage:	16VDC
Coil resistance:	225Ohm
Coil power:	640mW
Mounting:	PCB

All parameters

Manufacturer:: Hongfa Manufacturer part number: HFKA/012-2ZST RoHS Case style: Rys.HFKA-2z Datasheet

In stock:

270 pcs.

Quantity of pcs.	1+	5+	23+	92+	276+
Net price (EUR)	1,8224	1,3501	1,1681	1,0990	1,0713

Add to comparison tool Add inquiry (RFQ)

Packaging:
23/460/1380 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage (V):	12V
Contact current:	25A
Contact voltage:	16VDC
Coil resistance:	225Ohm
Coil power:	640mW
Mounting:	PCB
Manufacturer:	Hongfa
Dimensions:	14,0x14,2x15,4mm
Operating temperature (range):	-40°C ~ 85°C
