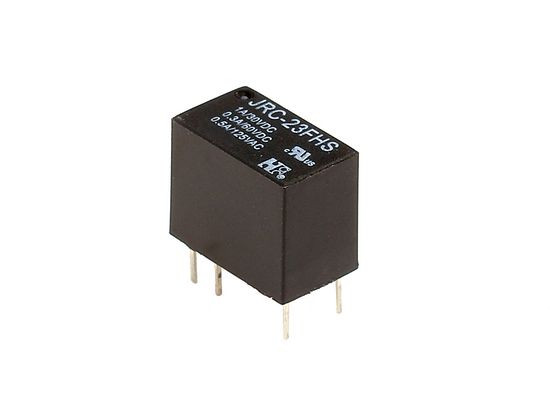

JRC23FHS1-3 signal relay

Symbol Micros: P JRC23FHS1-03

28513

P JRC23FHS1-03

Contractor Symbol:

Case : Rys.JRC23FH

Datasheet

Technical drawing Add to favourites

1A; 3V; SPDT; coil power 150mW; 12,5 x 7,5 x 10mm PCB, equivalent: JRC23F, FBR21-22, HY, TSC, G5V1, V23111, SY, AZ957

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	3V
AC contact current:	500mA
DC contact current:	1A
Contact voltage:	125VAC/60VDC
Coil power:	150mW

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	3V
AC contact current:	500mA
DC contact current:	1A
Contact voltage:	125VAC/60VDC
Coil power:	150mW
Mounting:	PCB
Manufacturer:	NFR
Dimensions:	12,5 x 7,5 x 10mm
Operating temperature (range):	-30°C ~ 70°C
