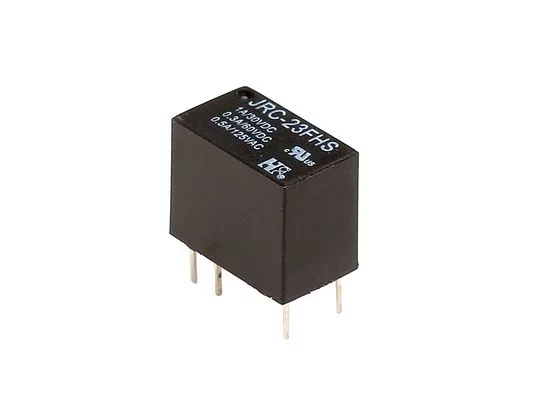

JRC23-FHS1 24VDC signal relay

Symbol Micros: P JRC23FHS1-24
Contractor Symbol:
Case : Rys.JRC23FH
Technical drawing Add to favourites
1A; 24V; SPDT; coil power 150mW; 12,5 x 7,5 x 10mm PCB, equivalent: JRC23F, FBR21-22, HY, TSC, G5V1, V23111, SY, AZ957
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
Contacts configuration: SPDT
Coil voltage type [AC, DC]: DC
Coil voltage (V): 24V
AC contact current: 500mA
DC contact current: 1A
Contact voltage: 125VAC/60VDC
Coil power: 150mW
Manufacturer:: Forward Relays Manufacturer part number: JRC-23FHS1DC24V RoHS Case style: Rys.JRC23FH Datasheet
In stock:
260 pcs.
Quantity of pcs. 1+ 5+ 20+ 100+ 500+
Net price (EUR) 1,0398 0,6901 0,5728 0,5153 0,4946
Add to comparison tool
Packaging:
20/100/1000
Contacts configuration: SPDT
Coil voltage type [AC, DC]: DC
Coil voltage (V): 24V
AC contact current: 500mA
DC contact current: 1A
Contact voltage: 125VAC/60VDC
Coil power: 150mW
Mounting: PCB
Manufacturer: NFR
Dimensions: 12,5 x 7,5 x 10mm
Operating temperature (range): -30°C ~ 70°C
