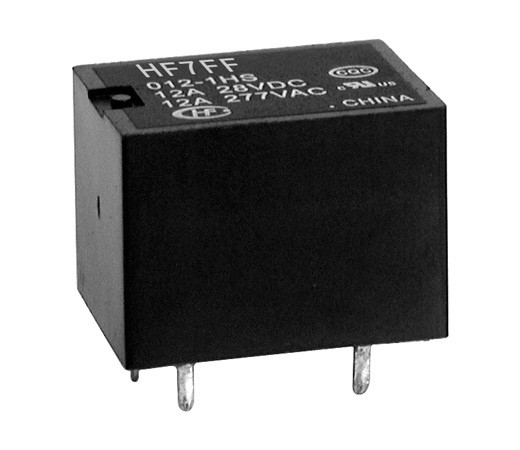

HF7FF/024-1ZS (JZC-7FF) power relay

Symbol Micros: P JZC7f24/5

5477

P JZC7f24/5

Contractor Symbol:

Case : Rys.JZC7FF.1z

Datasheet

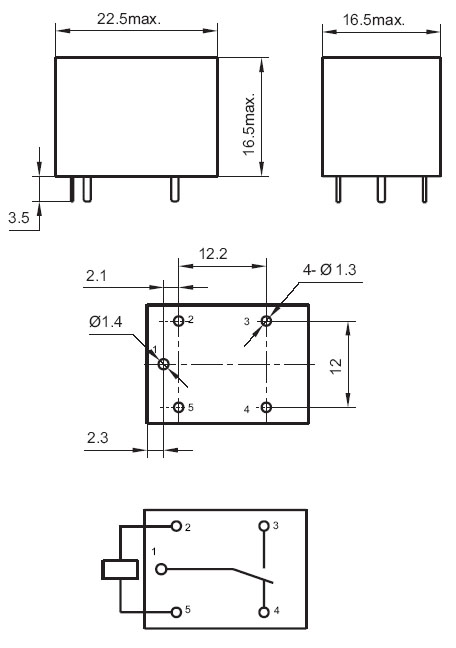

Technical drawing Add to favourites

10A; 24V; SPDT; coil power 360mW; 22,5 x 16,5 x 16,5mm PCB; equivalent: AZ942

Parameters

Coil voltage (V):	24V
Contact current:	10A
Type:	SPDT
Coil current type:	DC
Insulation breakdown voltage:	1500V

All parameters

Manufacturer:: Hongfa Manufacturer part number: HF7FF/024-1ZS RoHS Case style: Rys.JZC7FF.1z Datasheet

In stock:

17 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	1,9478	1,5429	1,3916	1,3148	1,2985

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/200 Quantity (multiple: 1)

- +

• Parameters

Coil voltage (V):	24V
Contact current:	10A
Type:	SPDT
Coil current type:	DC
Insulation breakdown voltage:	1500V
