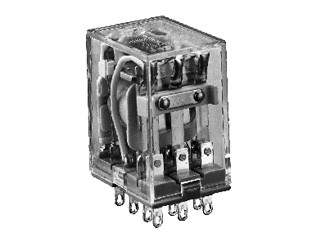

JZX18FF 2Ca 24VAC 1 power relay

Symbol Micros: P JZX18FF2Ca024ac

29483

P JZX18FF2Ca024ac

Contractor Symbol:

Case : Rys.JZX18FF.2c

Datasheet

Technical drawing Add to favourites

7A; 24VAC; DPDT; coil power 1,2VA; 28,0 x 21,5 x 35,5mm Plug-in; equivalent: MY, HC, KMH, ZT, KHA, HF18FF

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type:	DPDT
Coil current type:	AC
Coil voltage (V):	24V
Contact current:	7A
Insulation breakdown voltage:	1500V

All parameters

Manufacturer:: Forward Relays Manufacturer part number: JZX18FF2CaAC24V1 RoHS Case style: Rys.JZX18FF.2c Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	5+	25+	50+	200+
Net price (EUR)	1,6633	1,2285	1,0559	1,0191	0,9777

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/50 Quantity (multiple: 1)

- +

• Parameters

Type:	DPDT
Coil current type:	AC
Coil voltage (V):	24V
Contact current:	7A
Insulation breakdown voltage:	1500V
