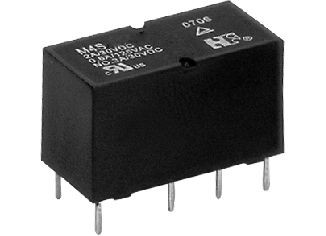

M4S-24HAW  signal relay

Symbol Micros: P M4S-24HAW

28020

P M4S-24HAW

Contractor Symbol:

Case : Rys.M4S

Datasheet

Technical drawing Add to favourites

2A; 24V; DPDT; coil power 200mW; 20,0 x 9,8 x 12,0mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	600mA
DC contact current:	3A
Contact voltage:	250VAC/220VDC
Coil power:	200mW

All parameters

Manufacturer:: Forward Relays Manufacturer part number: M4S-24HAW RoHS Case style: Rys.M4S Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,1301	0,7487	0,6177	0,5569	0,5382

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/300 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	600mA
DC contact current:	3A
Contact voltage:	250VAC/220VDC
Coil power:	200mW
Mounting:	PCB
Manufacturer:	NFR
Dimensions:	20,0 x 9,8 x 12,0mm
Operating temperature (range):	-40°C ~ 90°C
