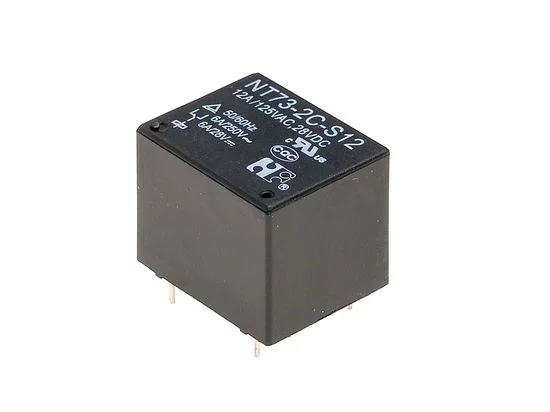

NT73-2-CS15 12VDC power relay

Symbol Micros: P NT73-2CS15-12

27041

P NT73-2CS15-12

Contractor Symbol:

Case : Rys.NT73

Datasheet

Technical drawing Add to favourites

15A; 12V; SPDT; coil power 360mW; 19,5 x 15,6 x 15,3mm PCB; equivalent: JQC3FF, RM50, FBR161H, RW-SH, G5L, AZ943, MCL-PCD

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type:	SPDT
Coil current type:	DC
Coil voltage (V):	12V
Contact current:	15A
Insulation breakdown voltage:	1500V

All parameters

Manufacturer:: Forward Relays Manufacturer part number: NT73-2CS15DC12V0.36 RoHS Case style: Rys.NT73 Datasheet

In stock:

875 pcs.

Quantity of pcs.	2+	10+	40+	100+	500+
Net price (EUR)	0,7822	0,4933	0,3970	0,3664	0,3406

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/500/1000 Quantity (multiple: 1)

- +

• Parameters

Type:	SPDT
Coil current type:	DC
Coil voltage (V):	12V
Contact current:	15A
Insulation breakdown voltage:	1500V
