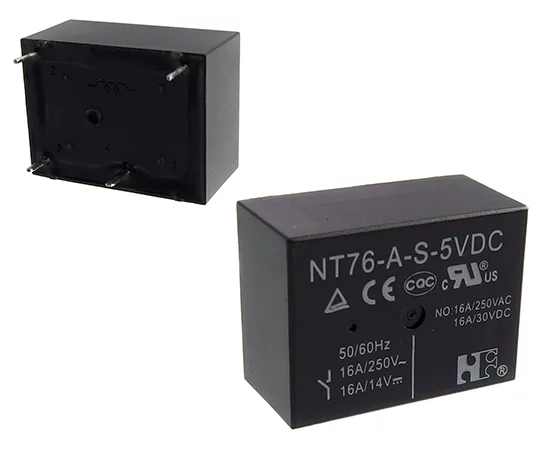

NT76-CS  5VDC power relay

Symbol Micros: P NT76-CS-05C

93837

P NT76-CS-05C

Contractor Symbol:

Case : Rys.NT76

Datasheet

Technical drawing Add to favourites

16A; 5V; SPDT; coil power 450mW; 22,3 x 16,6 x 11mm; sealed PCB; contacts AgCdO

Parameters

Type:	SPDT
Coil current type:	DC
Coil voltage (V):	5V
Contact current:	16A
Insulation breakdown voltage:	1500V

All parameters

Manufacturer:: Forward Relays Manufacturer part number: NT76-C-S-5VDC RoHS Case style: Rys.NT76 Datasheet

In stock:

99 pcs.

Quantity of pcs.	1+	5+	25+	100+	400+
Net price (EUR)	1,4818	1,0358	0,8656	0,8057	0,7793

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/100 Quantity (multiple: 1)

- +

• Parameters

Type:	SPDT
Coil current type:	DC
Coil voltage (V):	5V
Contact current:	16A
Insulation breakdown voltage:	1500V
