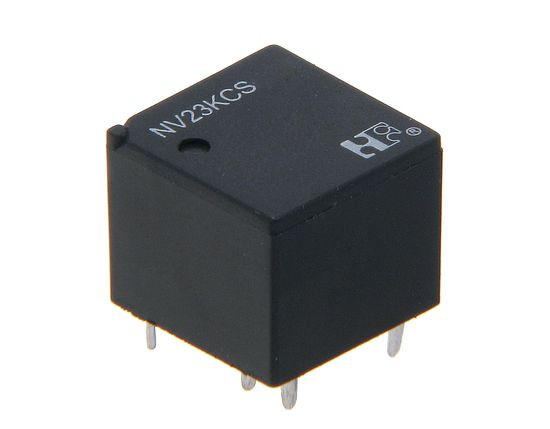

NV23K-CS30-012 automotive relay

Symbol Micros: P NV23Kcs/012-S

53271

P NV23Kcs/012-S

Contractor Symbol:

Case : Rys.NV23K-CS

Datasheet

Add to favourites

30A; 12V; SPDT; coil power 550mW; 12,9 x 9,9 x 12mm PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage (V):	12V
Contact current:	30A
Contact voltage:	24VDC
Coil resistance:	181Ohm
Coil power:	550mW
Mounting:	PCB

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPDT
Coil voltage (V):	12V
Contact current:	30A
Contact voltage:	24VDC
Coil resistance:	181Ohm
Coil power:	550mW
Mounting:	PCB
Manufacturer:	NFR
Dimensions:	12,9 x 9,9 x 12mm
Operating temperature (range):	-40°C ~ 105°C
