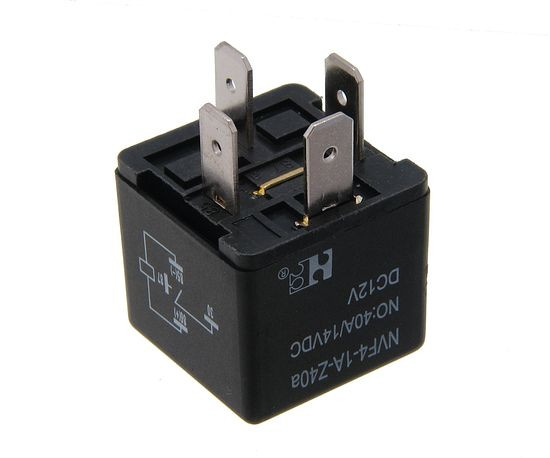

NV4-1AZ40a DC12 automotoive relay

Symbol Micros: P NVF4-1AZ40a-12

41801

P NVF4-1AZ40a-12

Contractor Symbol:

Case : Rys.NVF4-1A

Datasheet

Technical drawing Add to favourites

40A; 12V; SPST-NO; coil power 1,6W; 26,5 x 26,5 x 24,5mm

Parameters

Contacts configuration:	SPST-NO
Coil voltage (V):	12V
Contact current:	40A
Contact voltage:	75VDC
Coil resistance:	90Ohm
Coil power:	1,6W
Manufacturer:	NFR

All parameters

Manufacturer:: Forward Relays Manufacturer part number: NVF4-1AZ40a1DC12V1.6 RoHS Case style: Rys.NVF4-1A Datasheet

In stock:

270 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,7956	1,3335	1,1650	1,0832	1,0567

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-06-30

Quantity of pcs.: 200

• Parameters

Contacts configuration:	SPST-NO
Coil voltage (V):	12V
Contact current:	40A
Contact voltage:	75VDC
Coil resistance:	90Ohm
Coil power:	1,6W
Manufacturer:	NFR
Dimensions:	26,5 x 26,5 x 24,5mm
Operating temperature (range):	-40°C ~ 125°C
