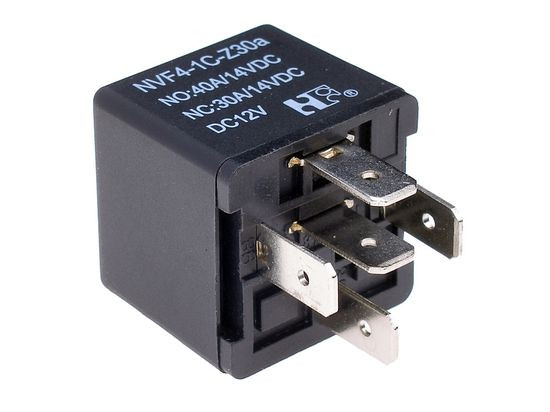

NFV4-1-CZ40a 12VDC automotive relay

Symbol Micros: P NVF4-1CZ30a-12

27297

P NVF4-1CZ30a-12

Contractor Symbol:

Case : Rys.NVF4-1

Datasheet

Technical drawing Add to favourites

30A; 12V; SPDT; coil power 1,6W; 26,5 x 26,5 x 24,5mm QC; equivalent: HFV4, GRL, CB, V23076, AZ973/972, G8L, VF4

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage (V):	12V
Contact current:	30A
Contact voltage:	75VDC
Coil resistance:	90Ohm
Coil power:	1,6W
Mounting:	QC

All parameters

Manufacturer:: Forward Relays Manufacturer part number: NVF4-1CZ30a1DC12V1.6 RoHS Case style: Rys.NVF4-1 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,4986	1,0500	0,8926	0,8151	0,7893

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/100/400 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-01-30

Quantity of pcs.: 1000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-05-20

Quantity of pcs.: 2000

• Parameters

Contacts configuration:	SPDT
Coil voltage (V):	12V
Contact current:	30A
Contact voltage:	75VDC
Coil resistance:	90Ohm
Coil power:	1,6W
Mounting:	QC
Manufacturer:	NFR
Dimensions:	26,5 x 26,5 x 24,5mm
Operating temperature (range):	-40°C ~ 125°C
