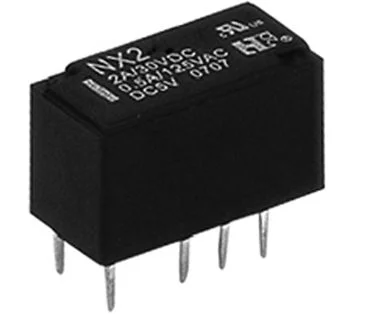

NX2-24  signal relay monostable

Symbol Micros: P NX2-24

28008

P NX2-24

Contractor Symbol:

Case : Rys.NX2

Datasheet

Technical drawing Add to favourites

2A; 24V; DPDT; coil power 200mW; 15,0 x 7,5 x 9,4mm PCB, equivalent TX, FTR-CI, G6S, FX2

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	200mW

All parameters

Manufacturer:: Forward Relays Manufacturer part number: NX2-24 RoHS Case style: Rys.NX2 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	2+	3+	5+	10+
Net price (EUR)	1,2003	0,9443	0,8362	0,7305	0,6319

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	200mW
Mounting:	PCB
Manufacturer:	NFR
Dimensions:	15,0 x 7,5 x 9,4mm
Operating temperature (range):	-40°C ~ 85°C
