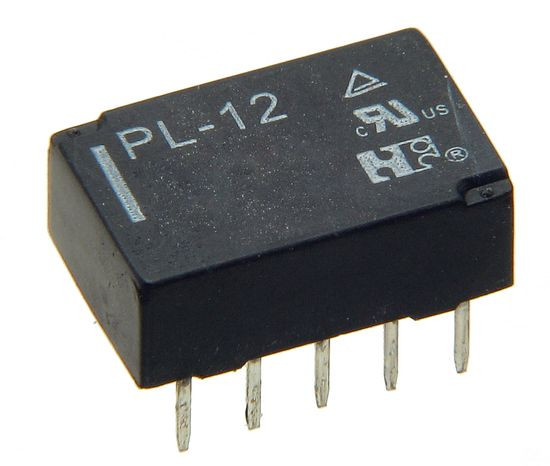

PL-12  signal relay bistable 1 coil

Symbol Micros: P PL12

28001

P PL12

Contractor Symbol:

Case : RYS.P

Datasheet

Technical drawing Add to favourites

1A; 12V; DPDT; coil power 100mW; 14,0 x 9,0 x 5,0mm PCB, equivalent TQ2, G6H, V23106, A

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	100mW

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-30

Quantity of pcs.: 150

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	100mW
Mounting:	PCB
Manufacturer:	NFR
Dimensions:	14,0 x 9,0 x 5,0mm
Operating temperature (range):	-40°C ~ 70°C
