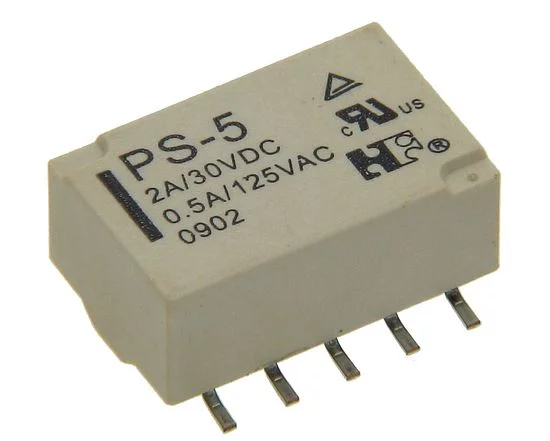

PS-5   signal relay SMT monostable

Symbol Micros: P PS05

27360

P PS05

Contractor Symbol:

Case : RYS.PS

Datasheet

Technical drawing Add to favourites

1A; 5V; DPDT; coil power 140mW; 14,2 x 9,3 x 5,3mm SMT, equivalent TQ2-SA, G6H-2F, V23106, AS

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	140mW

All parameters

Manufacturer:: Forward Relays Manufacturer part number: PS-5 RoHS Case style: RYS.PS Datasheet

In stock:

385 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,3113	0,9179	0,7799	0,7132	0,6901

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/5000 Quantity (multiple: 1)

- +

Manufacturer:: Forward Relays Manufacturer part number: PS-5 TR RoHS Case style: RYS.PS Datasheet

In stock:

1000 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,3113	0,9179	0,7799	0,7132	0,6901

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/5000 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	DPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	5V
AC contact current:	500mA
DC contact current:	2A
Contact voltage:	250VAC/220VDC
Coil power:	140mW
Mounting:	SMT
Manufacturer:	NFR
Dimensions:	14,2 x 9,3 x 5,3mm
Operating temperature (range):	-40°C ~ 85°C
