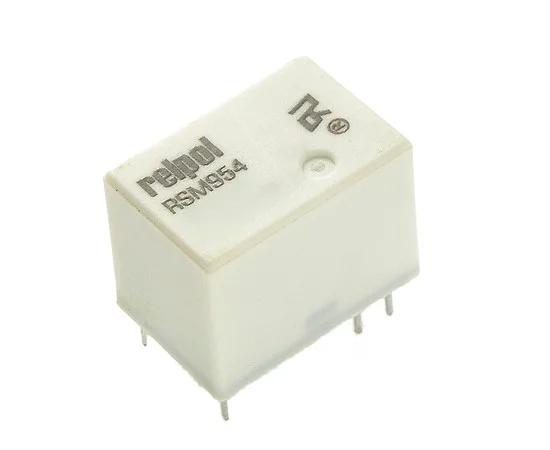

RSM954-0111-85-1024 subminiature signal relay, monostable

Symbol Micros: P RSM954p024

17715

P RSM954p024

Contractor Symbol:

Case : Rys.RSM954p

Datasheet

Technical drawing Add to favourites

3A; 24V; SPDT; Coil power 360mW; 15,4 x 10,4 x 11,4mm; IP64 PCB; quivalent: AZ954

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	3A
DC contact current:	3A
Contact voltage:	120VAC/60VDC
Coil power:	360mW

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	24V
AC contact current:	3A
DC contact current:	3A
Contact voltage:	120VAC/60VDC
Coil power:	360mW
Mounting:	PCB
Manufacturer:	RELPOL, ZETTLER
Dimensions:	15,4 x 10,4 x 11,4mm
Operating temperature (range):	-25°C ~ 55°C
