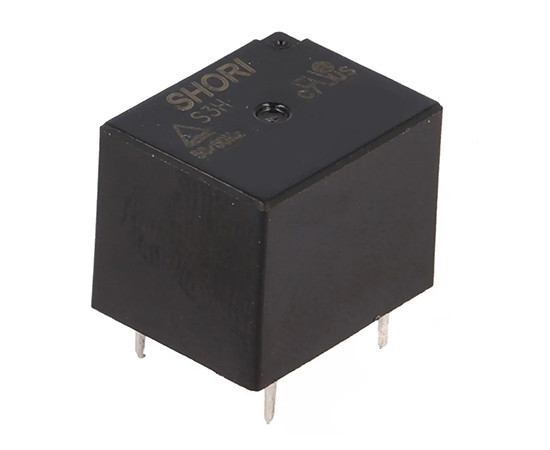

S3H-12-1C SHORI

Symbol Micros: P S3H-12V-1C

337834

P S3H-12V-1C

Contractor Symbol:

Case : S3H-C

Datasheet

Add to favourites

15A; 12VDC; SPDT; 0,36W; 19,6x15,6x15mm contacts Ag; PCB

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	15A
DC contact current:	15A
Contact voltage:	277VAC/30VDC
Coil power:	0,36W

All parameters

Manufacturer:: SHORI Manufacturer part number: S3H-12-1CS RoHS Case style: S3H-C Datasheet

In stock:

25 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,9446	0,6267	0,5184	0,4677	0,4493

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Contacts configuration:	SPDT
Coil voltage type [AC, DC]:	DC
Coil voltage (V):	12V
AC contact current:	15A
DC contact current:	15A
Contact voltage:	277VAC/30VDC
Coil power:	0,36W
Mounting:	PCB
Manufacturer:	SHORI
Dimensions:	19,6x15,6x15mm
Operating temperature (range):	-30°C ~ 85°C
