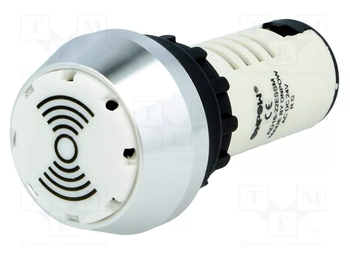

AD16-22SSM/RG/24V ONPOW

Symbol Micros: PBAD16-22ESSM/RG/24V

380529

PBAD16-22ESSM/RG/24V

Contractor Symbol:

Case : Rys.PBAD16-22SSM/RG/24V

Datasheet

Technical drawing Add to favourites

Sound signalling device: 80dB, opening diam. assembly.: 22mm; screw terminals, max 6mm illuminated LED 24V; dot; red/green; plastic in metal rim, 24V DC, -20...50°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Nominal voltage:	24V
Diameter:	22mm
Leads:	Screw clamps
Material:	Plastic with metal frame
Sound level:	80dB
Operating temperature (range):	-20°C ~ 55°C
Thickness:	6mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Nominal voltage:	24V
Diameter:	22mm
Leads:	Screw clamps
Material:	Plastic with metal frame
Sound level:	80dB
Operating temperature (range):	-20°C ~ 55°C
Thickness:	6mm
Signaling device type:	Sound
