KPX1205B KEPO

Symbol Micros: PBGKPX1205b
Contractor Symbol:
Case : Rys.KPX1205B

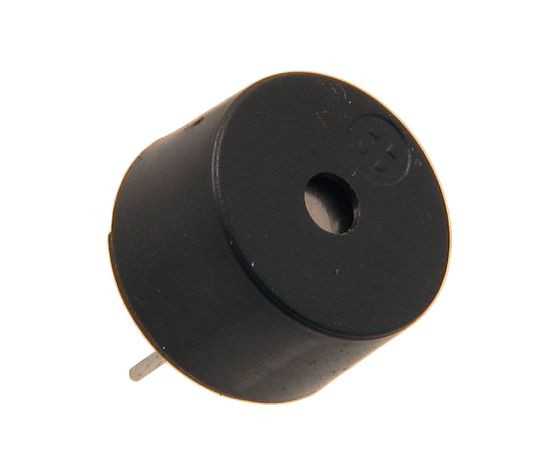

Magnetic tranducer with generator and in package; Dimensions Φ12x7,5mm; Voltage 5V; Loudnes 85dB; Current 30mA Frequency 3100Hz; With pins; Equivalenti: BMT-1205XH7.5, BMT-1206UX
Parameters
Dimensions: í12x7.5mm
Frequency: 3100Hz
Current: 0,03A
Operating voltage: 5V
Acoustic pressure: 85dB
Manufacturer:: KFB Manufacturer part number: KPX-G1205B RoHS Case style: Rys.KPX1205B
In stock:
50272 pcs.
Quantity of pcs. 2+ 10+ 40+ 100+ 500+
Net price (EUR) 0,8079 0,5091 0,4087 0,3776 0,3513
Add to comparison tool
Packaging:
100/500


Item in delivery
Estimated date:
2025-05-05
Quantity of pcs.: 38000
Dimensions: í12x7.5mm
Frequency: 3100Hz
Current: 0,03A
Operating voltage: 5V
Acoustic pressure: 85dB
Detailed description

KPX-G1205B is a dynamic transducer (buzzer) with a nominal voltage of 5V, designed for acoustic signaling in electronic devices. It features compact dimensions and a lightweight construction, making it ideal for small applications. The KPX-G1205B operates within a voltage range of 4V to 8V, providing flexibility in integration with various power systems. The current consumption is a maximum of 30mA, making it an energy-efficient solution for devices requiring continuous sound signaling.

The generated sound reaches a level of at least 85dB at a distance of 10cm, ensuring good audibility under most operating conditions. The resonant frequency is 3100Hz ±500Hz, providing a clear and distinctive sound signal.

The operating temperature range of the KPX-G1205B is between -20°C and +70°C, allowing its use in devices operating under diverse environmental conditions. The pin-based construction makes the buzzer easy to mount on PCB boards, while the built-in generator eliminates the need for an external control circuit.

Magnetic transducer with generator
Manufacturer: Kepo Electronic
Size / Dimension: circular ø12x7,5mm
Operating voltage: 5V
Current: 30mA
Sound Pressure Level: 85dB
Frequency: 3100Hz
Operating Temperature: -20°C ~ 70°C
