PD MS-DIP3

Symbol Micros: PD MS-DIP3

20013

PD MS-DIP3

Contractor Symbol:

Case : Rys.MS-DIP3

Datasheet

Technical drawing Add to favourites

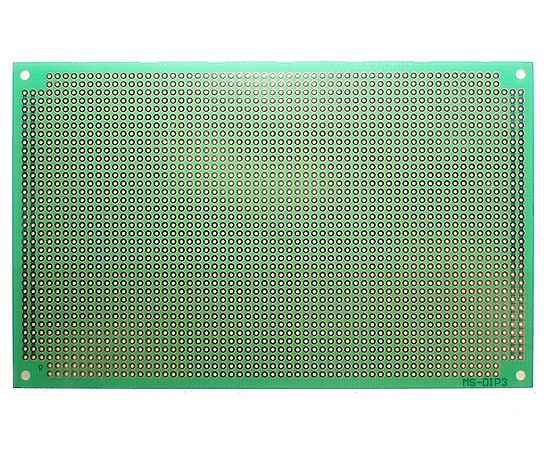

Universal PCB, single-sided for through-hole mounting MS-DIP3 Hole diameter 1,0mm; pitch 2,54mm, dimensions 160x100mm,

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	160x100mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP3 RoHS Case style: Rys.MS-DIP3 Datasheet

In stock:

37 pcs.

Quantity of pcs.	1+	3+	10+	30+	90+
Net price (EUR)	9,5707	8,2246	7,3822	6,9482	6,6930

Add to comparison tool Add inquiry (RFQ)

Packaging:
30 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	160x100mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Jednostronna uniwersalna do montażu elementów przewlekanych.

• średnica otworów 1,0mm
• raster 2,54mm
• bez ścieżek
• wymiary 160x100mm.
