PD MS-DIP/PLCC4

Symbol Micros: PD MS-DIP/PLCC4

35227

PD MS-DIP/PLCC4

Contractor Symbol:

Case : Rys.PD MS-DIP/PLCC4

Datasheet

Add to favourites

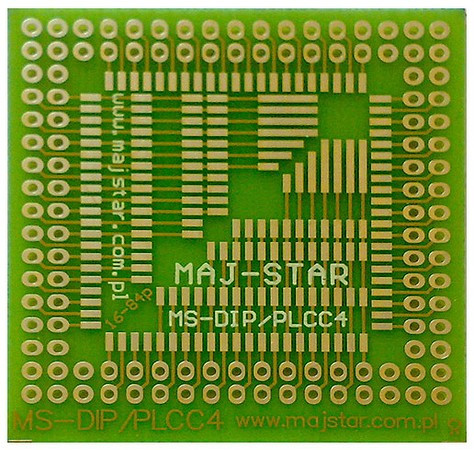

Universal PCB, single-sided for mounting SMD PLCC16 - PLCC84_ Hole diameter 1,0 mm; pitch 2,54 mm, dimensions 46x48 mm

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	46x48mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/PLCC4 RoHS Case style: Rys.PD MS-DIP/PLCC4 Datasheet

In stock:

57 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,9731	1,5738	1,3460	1,2097	1,1604

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	46x48mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Przejściowo-projektowa, jednostronna do montażu elementów powierzchniowych PLCC16 - PLCC84 kwadratowych,

• średnica otworów 1,0 mm
• raster 2,54 mm,
• wymiary 46x48 mm
