PD MS-DIP/QFP2

Symbol Micros: PD MS-DIP/QFP2

20019

PD MS-DIP/QFP2

Contractor Symbol:

Case : Rys.MS-DIP-QFP2

Datasheet

Technical drawing Add to favourites

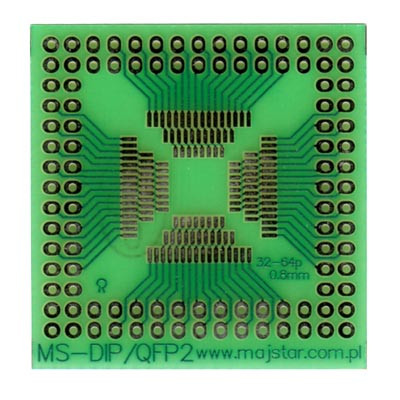

Universal PCB, single-sided for mounting SMD QFP32-QFP64 with pitch 0,8mm. Hole diameter 1,0mm; pitch 2,54mm; dimensions 40,5x43mm.

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	40,5x43mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/QFP2 RoHS Case style: Rys.MS-DIP-QFP2 Datasheet

In stock:

47 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,1282	1,7406	1,5174	1,3812	1,3295

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	40,5x43mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Jednostronna do montażu SMD QFP32-QFP64 z rastrem 0,8mm.

• średnica otworów 1,0mm
• raster 2,54mm
• wymiary 40,5x43mm.
