PD MS-DIP/QFP6

Symbol Micros: PD MS-DIP/QFP6

20020

PD MS-DIP/QFP6

Contractor Symbol:

Case : Rys.MS-DIP-QFP6

Datasheet

Technical drawing Add to favourites

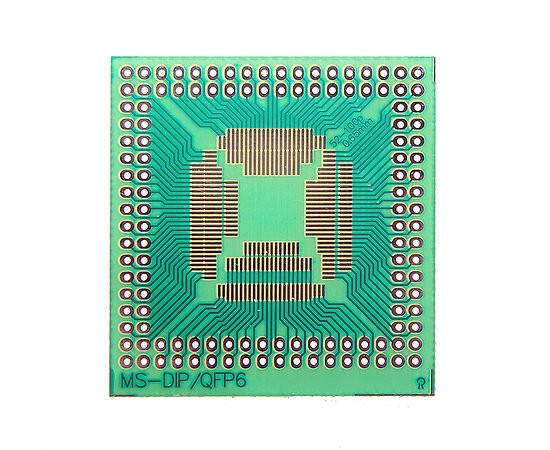

Universal PCB, single-sided for mounting SMD QFP52-QFP100 witch pitch 0,65mm. Hole diameter 1,0mm; pitch 2,54mm; dimensions 48x50,5mm.

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	48x50,5mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/QFP6 RoHS Case style: Rys.MS-DIP-QFP6 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	2,4570	2,0600	1,8322	1,7030	1,6372

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	48x50,5mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Jednostronna do montażu SMD QFP52-QFP100 z rastrem 0,65mm.

• średnica otworów 1,0mm
• raster 2,54mm
• wymiary 48x50,5mm.
