PD MS-DIP/QFP9

Symbol Micros: PD MS-DIP/QFP9

20023

PD MS-DIP/QFP9

Contractor Symbol:

Case : Rys.MS-DIP-QFP9

Datasheet

Technical drawing Add to favourites

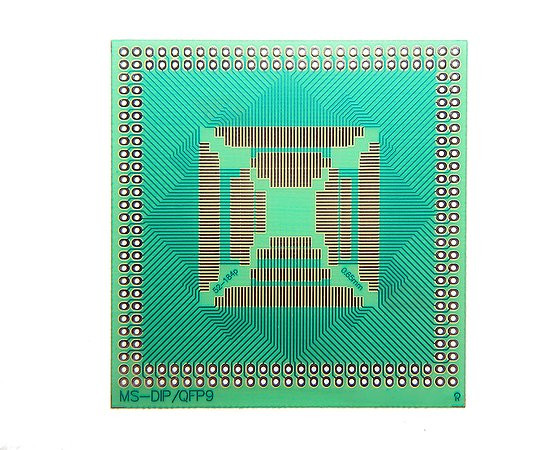

Universal PCB, single-sided for mounting SMD QFP52-QFP184 witch pitch 0,65mm. Hole diameter 1,0mm; pitch 2,54mm, dimensions 71x73,5mm.

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	71x73,5mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/QFP9 RoHS Case style: Rys.MS-DIP-QFP9 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,6790	3,0420	2,6665	2,4835	2,3742

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	71x73,5mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Single-sided PCB for SMD QFP52-QFP184 mounting with 0.65mm pitch.

• Hole diameter: 1.0mm
• Pitch: 2.54mm
• Dimensions: 71x73.5mm
