PD MS-DIP/SMD2
Symbol Micros:
PD MS-DIP/SMD2
Case : Rys.PD MS-DIP/SMD2

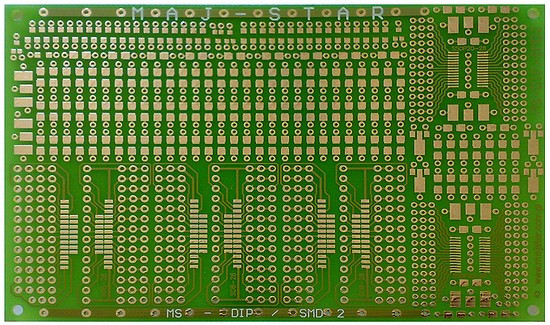

Universal PCB, single-sided for mounting SMD Hole diameter 1,0 mm; pitch 2,54 mm and 0,7 mm, dimensions 120x80 mm
Parameters
| Dimensions: | 120x80mm |
| Terminal pitch: | 2,54mm/0,7mm |
| Manufacturer: | Maj-Star Elektronik |
| Hole diameter: | 1mm |
| Type (Single/Double sided): | Unilateral |
| Dimensions: | 120x80mm |
| Terminal pitch: | 2,54mm/0,7mm |
| Manufacturer: | Maj-Star Elektronik |
| Hole diameter: | 1mm |
| Type (Single/Double sided): | Unilateral |
Detailed description
Single-sided PCB for through-hole components DIP6 - DIP28, surface-mount components SO8 - SO28S and SSOP20 - SSOP28 with parallel copper tracks (segments), and discrete surface-mount components: 0805, 1206, SOT23, SOT89, SOT143, SOT223, SOT323, SOD80, SOD87, MELF, SMA, SMB, SMC, and tantalum capacitors sizes A, B, C, and D.
- Hole diameter: 1.0 mm
- Pitch: 2.54 mm
- Dimensions: 120x80 mm
