PD MS-DIP/SMD4
Symbol Micros:
PD MS-DIP/SMD4
Case : Rys.PD MS-DIP/SMD4

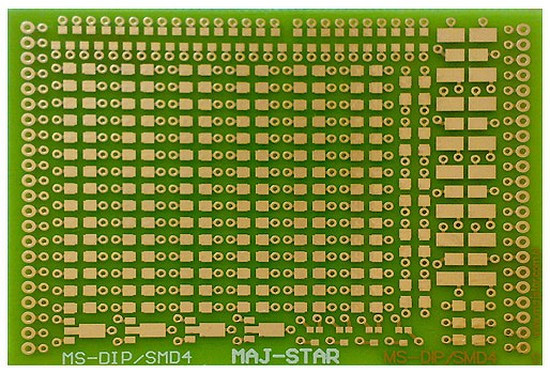

Universal PCB, single-sided for mounting SMD Hole diameter 1,0 mm; pitch 2,54 mm and 0,7 mm, dimensions 80x60 mm
Parameters
| Dimensions: | 80x60mm |
| Terminal pitch: | 2,54mm/0,7mm |
| Manufacturer: | Maj-Star Elektronik |
| Hole diameter: | 1mm |
| Type (Single/Double sided): | Unilateral |
| Dimensions: | 80x60mm |
| Terminal pitch: | 2,54mm/0,7mm |
| Manufacturer: | Maj-Star Elektronik |
| Hole diameter: | 1mm |
| Type (Single/Double sided): | Unilateral |
Detailed description
Prototype, single-sided PCB for mounting discrete surface-mount components: 0805, 1206, SOT23, SOT89, SOT143, SOT223, SOT323, SOD80, SOD87, MELF, SMA, SMB, SMC, and tantalum capacitors sizes A, B, C, and D.
- Hole diameter: 1.0 mm
- Pitch: 2.54 mm
- Dimensions: 80x60 mm
