PD MS-DIP/SMD5
Symbol Micros:
PD MS-DIP/SMD5

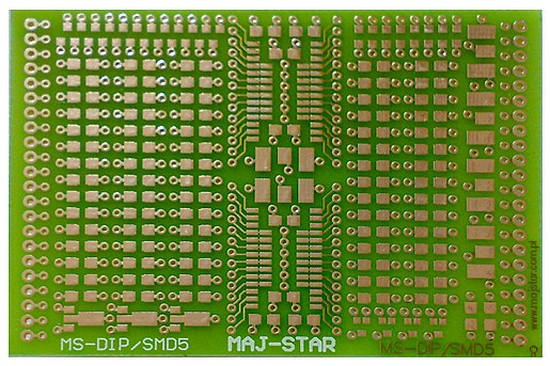

Case : Rys.PD MS-DIP/SMD5
Universal PCB, single-sided for mounting SMD Hole diameter 1,0 mm; pitch 2,54 mm and 0,7 mm, dimensions 80x60 mm
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Dimensions: | 80x60mm |
| Terminal pitch: | 2,54mm/0,7mm |
| Manufacturer: | Maj-Star Elektronik |
| Hole diameter: | 1mm |
| Type (Single/Double sided): | Unilateral |
| Dimensions: | 80x60mm |
| Terminal pitch: | 2,54mm/0,7mm |
| Manufacturer: | Maj-Star Elektronik |
| Hole diameter: | 1mm |
| Type (Single/Double sided): | Unilateral |
Detailed description
Przejściowo-projektowa, jednostronna do montażu elementów powierzchniowych SO8 - SO28S oraz elementów dyskretnych powierzchniowych 0805, 1206, SOT23, SOT89, SOT143, SOT223, SOT323, SOD80, SOD87, MELF, SMA, SMB, SMC, kondensatorów tantalowych A, B, C i D
- średnica otworów 1,0 mm
- raster 2,54 mm
- wymiary 80x60 mm
