PD MS-DIP/SO1

Symbol Micros: PD MS-DIP/SO1

20011

PD MS-DIP/SO1

Contractor Symbol:

Case : Rys.MS-DIP-SO1

Datasheet

Technical drawing Add to favourites

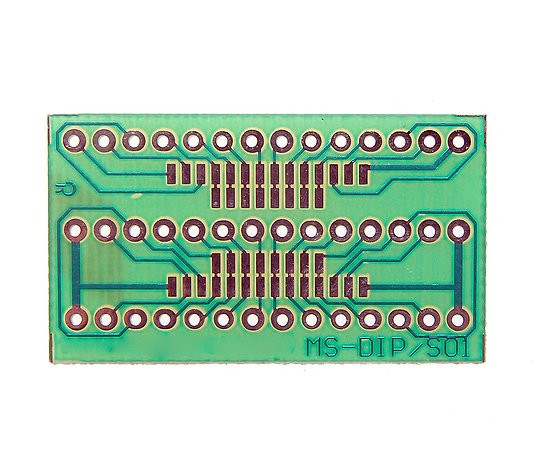

Universal PCB, single-sided for mounting SMD, transition from SO8-SO28L to DIP8- Hole diameter 1,0mm; pitch 2,54mm; dimensions 21x37,5mm.

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	21x37,5mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/S01 RoHS Case style: Rys.MS-DIP-SO1 Datasheet

In stock:

42 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,1604	0,8127	0,6906	0,6319	0,6107

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	21x37,5mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Przejściowa SO8-SO28L na DIP8-DIP28.

• średnica otworów 1,0mm
• raster 2,54mm
• wymiary 21x37,5mm.
