PD MS-DIP/SO3

Symbol Micros: PD MS-DIP/SO3

20009

PD MS-DIP/SO3

Contractor Symbol:

Case : Rys.MS-DIP-SO3

Datasheet

Technical drawing Add to favourites

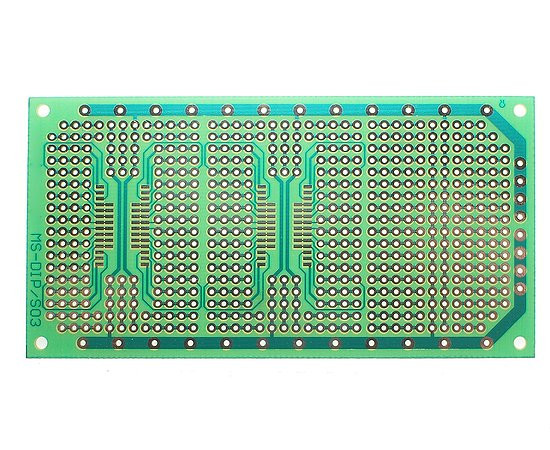

Universal PCB, single-sided for mounting SMD, transition SO8-SO28L for DIP8-DIP28 Hole diameter 1,0mm; pitch 2,54mm; dimensions 107x56mm.

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	107x56mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/S03 RoHS Case style: Rys.MS-DIP-SO3 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	4,4422	3,7406	3,3173	3,1080	2,9814

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	107x56mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Jednostronna, przejściowa SO8-SO28L na DIP8-DIP28.

• średnica otworów 1,0mm
• raster 2,54mm
• wymiary 107x56mm.
