PD MS-DIP/SO4

Symbol Micros: PD MS-DIP/SO4

20008

PD MS-DIP/SO4

Contractor Symbol:

Case : Rys.MS-DIP-SO4

Datasheet

Technical drawing Add to favourites

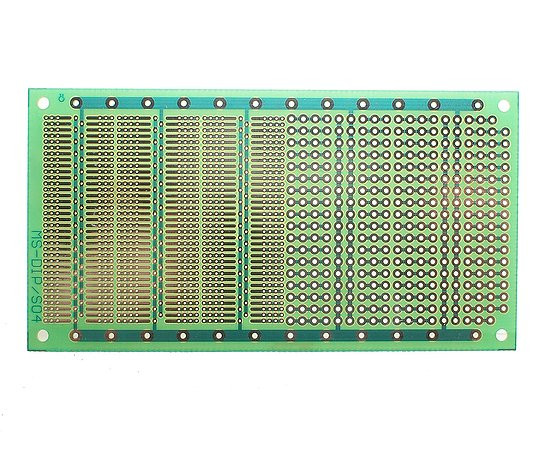

Universal PCB, single-sided for mounting SMD SO8-SO32S. Hole diameter 1,0mm; pitch 2,54mm; 0,5mm; pitch 1,27mm; dimensions 105x56mm.

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	105x56mm
Terminal pitch:	2,54mm/1,27mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Dimensions:	105x56mm
Terminal pitch:	2,54mm/1,27mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Jednostronna do montażu SMD SO8-SO32S.

• średnica otworów 1,0mm
• raster 2,54mm
• wymiary 105x56mm
