PD MS-DIP/SO6

Symbol Micros: PD MS-DIP/SO6

20006

PD MS-DIP/SO6

Contractor Symbol:

Case : Rys.MS-DIP-SO6

Datasheet

Technical drawing Add to favourites

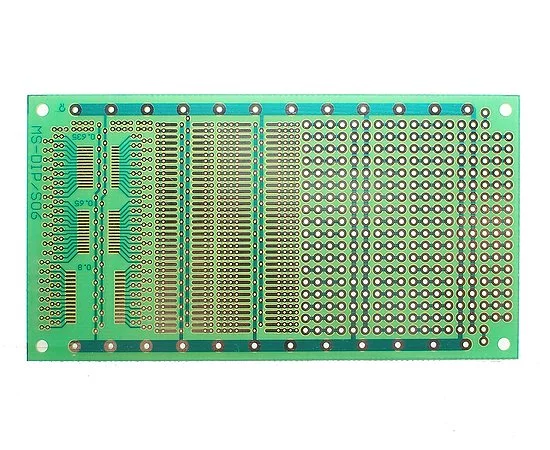

Universal PCB, single-sided for mounting SMD SO8-SO32S, SSOP8-SSOP28, TSSOP8 Hole diameter.1,0mm; pitch 2,54mm;0,5mm; 1,27mm; dim:105x56mm;SMD:0,8; 0,65;

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	105x56mm
Terminal pitch:	2,54mm/1,27mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/SO6 RoHS Case style: Rys.MS-DIP-SO6 Datasheet

In stock:

6 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	6,7392	5,7221	5,0972	4,7801	4,5852

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	105x56mm
Terminal pitch:	2,54mm/1,27mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Jednostronna SMD SO8-SO32S, SSOP8-SSOP28, TSSOP8-TSSOP28.

• raster 0,8; 0,65; 0,635;
• śr. otwor. 1,0mm/ras 2,54mm; 0,5mm/ras 1,27mm;
• wymiary: 105x56mm.
