PD MS-DIP/SO7

Symbol Micros: PD MS-DIP/SO7

20004

PD MS-DIP/SO7

Contractor Symbol:

Case : Rys.MS-DIP-SO7

Datasheet

Technical drawing Add to favourites

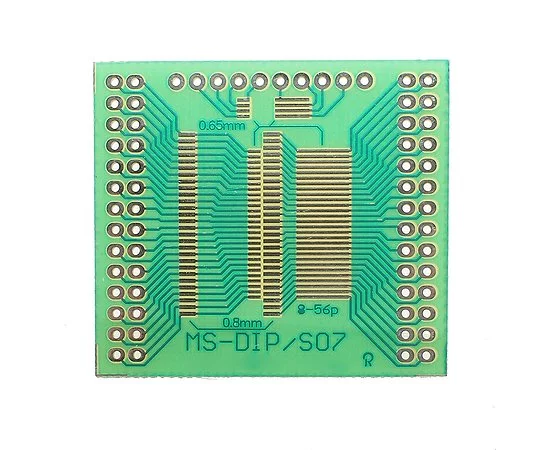

Universal PCB, single-sided for mounting SMD SSOP8-SSOP56, TSSOP8-TSSOP Hole diameter 1,0mm; pitch 2.54mm; dimensions 43x38mm; SMD: 0,8mm; 0,65mm.

Product description

Parameters

Dimensions:	43x38mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: MAJSTAR Manufacturer part number: MS-DIP/SO7 RoHS Case style: Rys.MS-DIP-SO7 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,9134	1,6041	1,4267	1,3164	1,2756

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	43x38mm
Terminal pitch:	2,54mm
Manufacturer:	Maj-Star Elektronik
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Single-sided for SMD assembly SSOP8-SSOP56, TSSOP8-TSSOP56.

• Pitch: 0.8mm; 0.65mm
• Hole diameter: 1.00mm/pitch 2.54mm
• Dimensions: 43x38mm
