PD UM-07W

Symbol Micros: PD UM-07W

22404

PD UM-07W

Contractor Symbol:

Case : Rys.UM-07W

Datasheet

Add to favourites

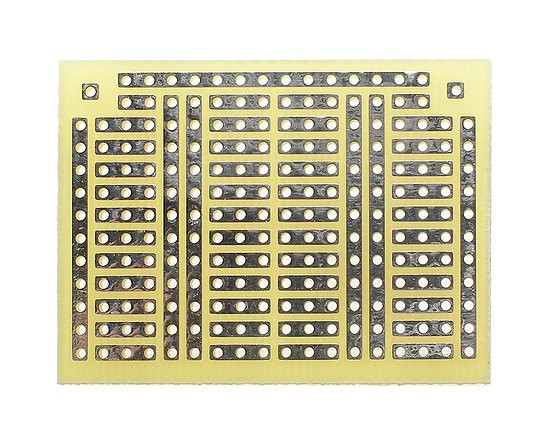

Universal PCB, single-sided for through-hole mounting UM-7W Hole diameter 1,0mm; pitch 2,54mm; dimensions 36x48mm.

Product description

Parameters

Dimensions:	36x48mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: CYFRONIKA Manufacturer part number: UM-07W RoHS Case style: Rys.UM-07W Datasheet

In stock:

30 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,6532	1,2617	1,0447	0,9150	0,8702

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	36x48mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Printed Circuit Board, single-sided, universal for through-hole mounting UM-7W

Hole diameter: 1.0 mm
Pitch: 2.54 mm
Dimensions: 36 x 48 mm
