PD UM-09W

Symbol Micros: PD UM-09w

22406

PD UM-09w

Contractor Symbol:

Case : Rys.UM-09W

Datasheet

Add to favourites

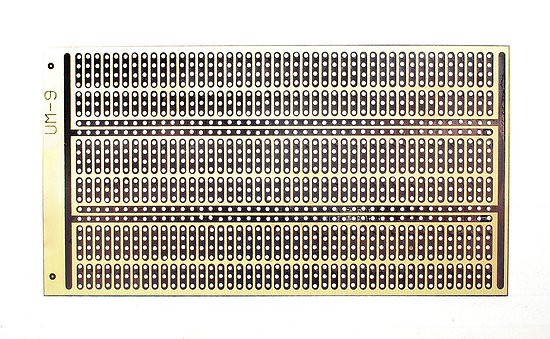

Universal PCB, single-sided for through-hole mounting UM-9W Hole diameter 1,0mm; pitch 2,54mm; dimensions 66x125mm

Product description

Parameters

Dimensions:	66x125mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

All parameters

Manufacturer:: CYFRONIKA Manufacturer part number: UM-9W RoHS Case style: Rys.UM-09W

In stock:

22 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	3,2250	2,7872	2,5288	2,3658	2,3029

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	66x125mm
Manufacturer:	Cyfronika
Terminal pitch:	2,54mm
Hole diameter:	1mm
Type (Single/Double sided):	Unilateral

Detailed description

Printed Circuit Board, single-sided, universal for through-hole mounting UM-9W

Hole diameter: 1.0 mm
Pitch: 2.54 mm
Dimensions: 66 x 125 mm
