PIC16F15325-E/JQ Microchip Technology

Symbol Micros: PIC16f15325e/jq

223407

PIC16f15325e/jq

Contractor Symbol:

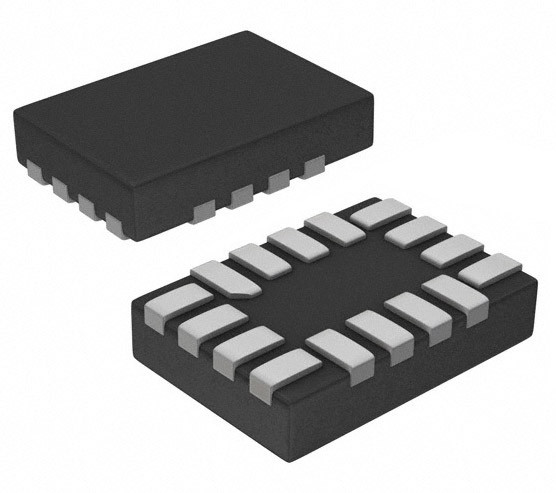

Case : UQFN16

Datasheet

Technical drawing Add to favourites

8-bit MCU; 14kB-FLASH; 1kB-SRAM; 12 I/O; 2,3V~5,5V; 32MHz; A/D; D/A; USART; SPI; TWI; -40°C ~ 125°C;

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Case:	UQFN16
Number of I/O:	12
RAM memory:	1kB
FLASH memory:	14kB
Supply voltage range:	2,3V~5,5V
Frequency:	32,000MHz
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: Microchip Manufacturer part number: PIC16F15325-E/JQ RoHS Case style: UQFN16 Datasheet

In stock:

17 pcs.

Quantity of pcs.	1+	5+	20+	73+	292+
Net price (EUR)	1,5791	1,1697	1,0246	0,9591	0,9287

Add to comparison tool Add inquiry (RFQ)

Packaging:
73 Quantity (multiple: 1)

- +

• Parameters

Case:	UQFN16
Number of I/O:	12
RAM memory:	1kB
FLASH memory:	14kB
Supply voltage range:	2,3V~5,5V
Frequency:	32,000MHz
Operating temperature (range):	-40°C ~ 125°C
Architecture:	8-bit
ADC:	YES
CAN interface:	NO
DAC:	YES
ETHERNET interface:	NO
Encryption:	NO
SPI interface:	YES
TWI (I2C) interface:	YES
UART/USART interface:	YES
USB interface:	NO
Manufacturer:	MICROCHIP
