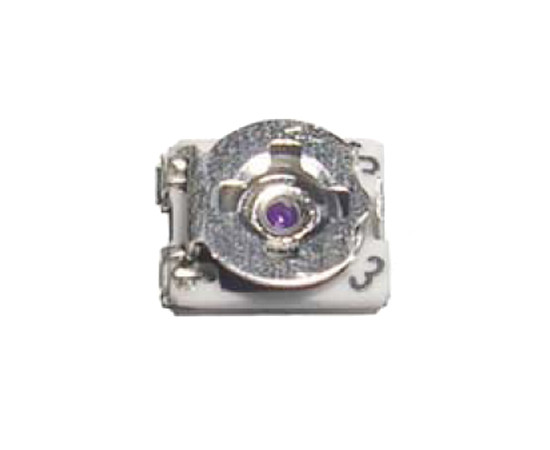

Single turn cermet trimmer potentiometer; 3305; 200R;

Symbol Micros: PO 33050200

103345

PO 33050200

Contractor Symbol:

Case : Rys.3305SMD

Datasheet

Technical drawing Add to favourites

200R; turn: 270°; SMD; 3.8x3.7x1.2mm; power: 0.15W; tolerance: ±25%; 250ppm/°C; operating temperature: -40÷100°C

Parameters

Resistance:	200 Ohm
Dimensions:	3.8x3.7x1.2mm
Manufacturer:	N/A
Number of rotations:	1
Operating temperature (range):	-40°C ~ 100°C
Characteristic:	N/A
Kind of potentiometer:	Single-turn

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	200 Ohm
Dimensions:	3.8x3.7x1.2mm
Manufacturer:	N/A
Number of rotations:	1
Operating temperature (range):	-40°C ~ 100°C
Characteristic:	N/A
Kind of potentiometer:	Single-turn
Power:	150mW
Temperature coefficient:	250ppm/°C
Tolerance:	25%
Mounting:	SMD
Rotation angle:	270°
Tolerance:	25%
Type of potentiometer:	Mounting
